Generator & Solar Panel Bundle
- Excellent Gear To Power-Up Your Life - The portable power supply is made not only for backup power at home but is also very useful for camping, or wherever you need power when you are on the go. With high power/energy, you can keep you electrical devices, appliances, lights and more going for longer.
- Compact Design With Tough Structure - The portable power supply's Aluminum alloy shell is designed to provide tough environmental protection. The product structure adopts a multi-point buckle, allowing the generator to be dust-proof, impact-resistant and have extremely powerful ruggedness.
- Built-In High Quality Lithium Battery - The portable power supply contains high quality Lithium batteries, featured with a long lifespan, high safety, high-power density, high capacity, high temperature resistance, slim size, and more portable weight.
- Smart And Safe - The portable power supply has built-in BMS which is controlled by a smart power control processor. It features excellent safety, including overcharge proof, over discharge proof, over current proof, overpower proof and short circuit proof.

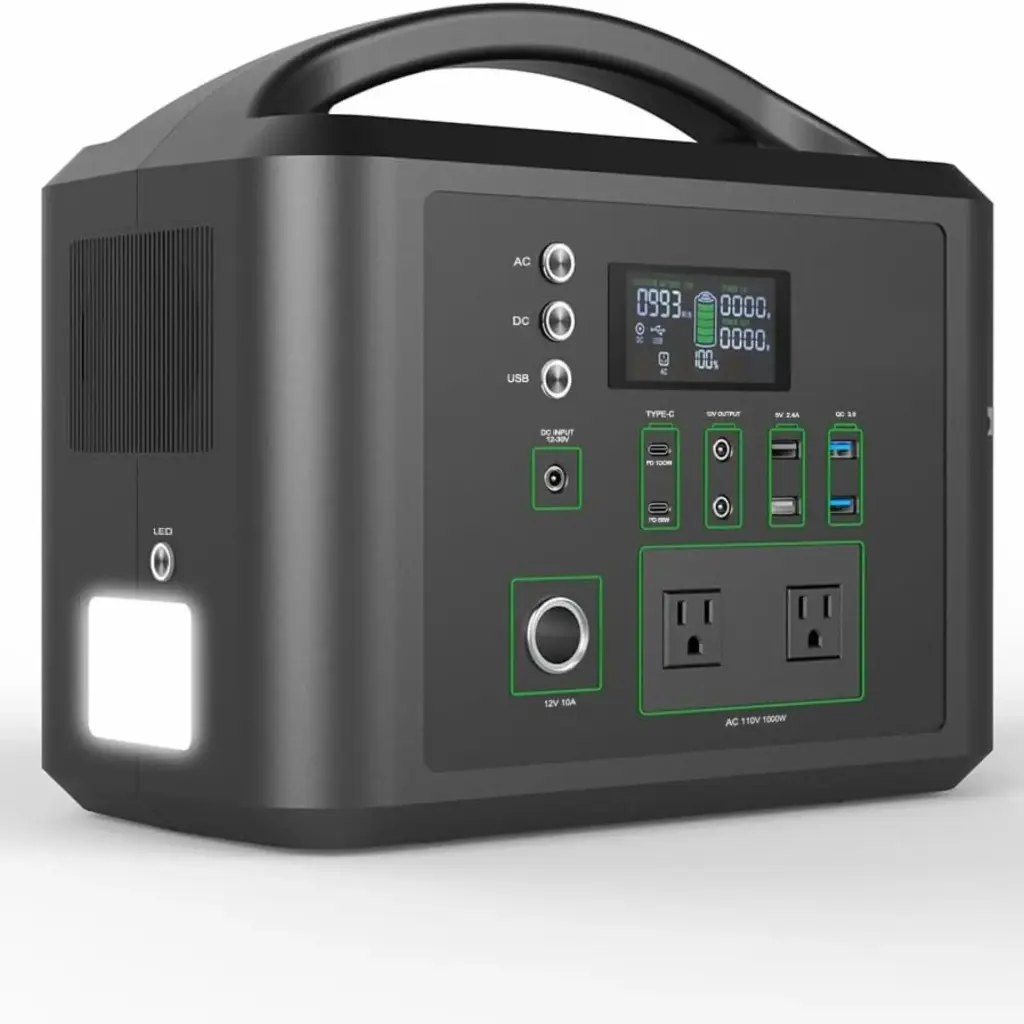

Generator Specifications:
| Battery Capacity | 300000mAh / 3.7V / 1100Wh |
| Battery Type | Lithium ion Batteries |
| Charge Input | CC/CV 26V/4.5A |
| USB Output | 5V/2.1 max |
| QC 3.0 | 5V/3A, 9V/2A, 12V/1.5A |
| DC Output | 12V +/- 1V / 8A max |
| Type C Outpt | PD 60W:5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A |
| Fully Charged Time | DC 19V: 8-9 hours |
| Solar Charge Input | 18V-30V |
| Output Waveform | Pure Sine Wave |
| Lifecycle | >500 times |
| Gross Weight | About 11kg |
| Operation Temperature | -10 ° C (14 ° F) - 60 ° C (140 ° F) |
| Version | 110-120V 60HZ |

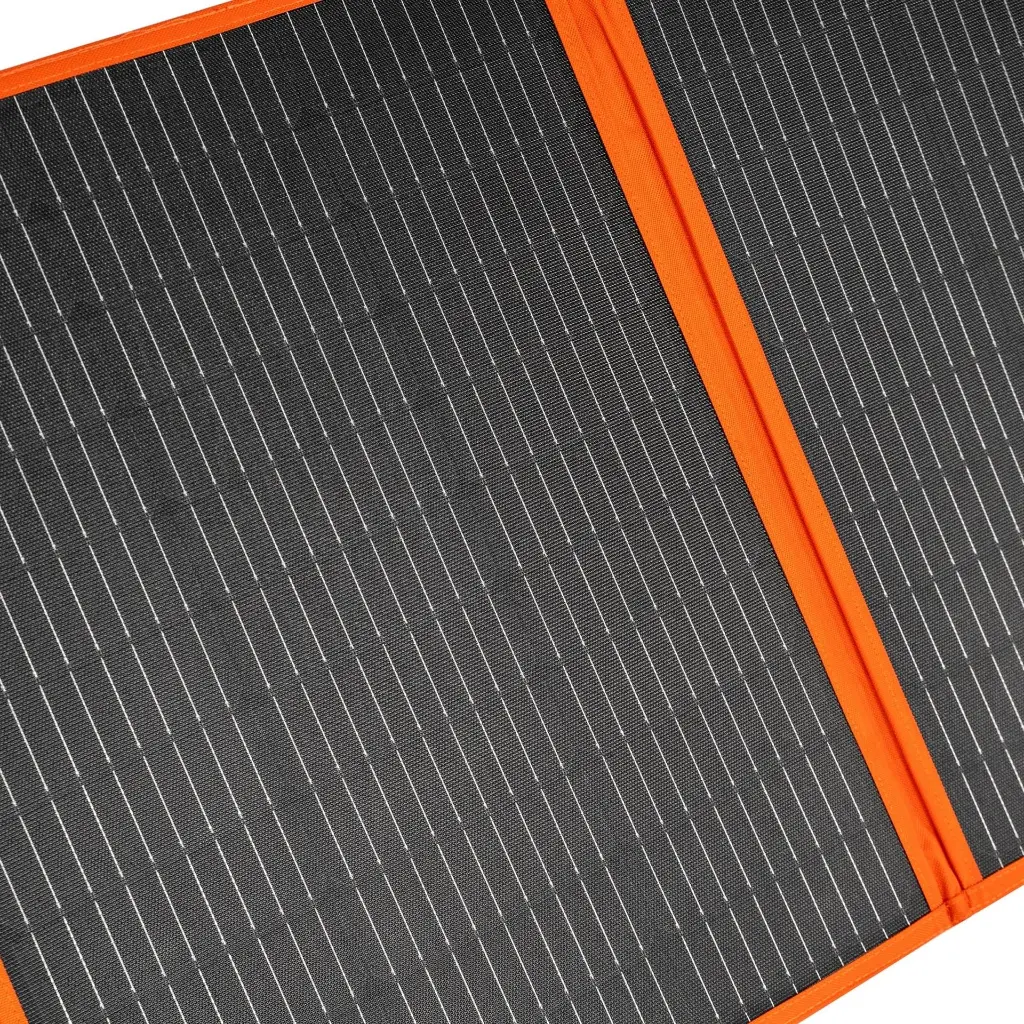

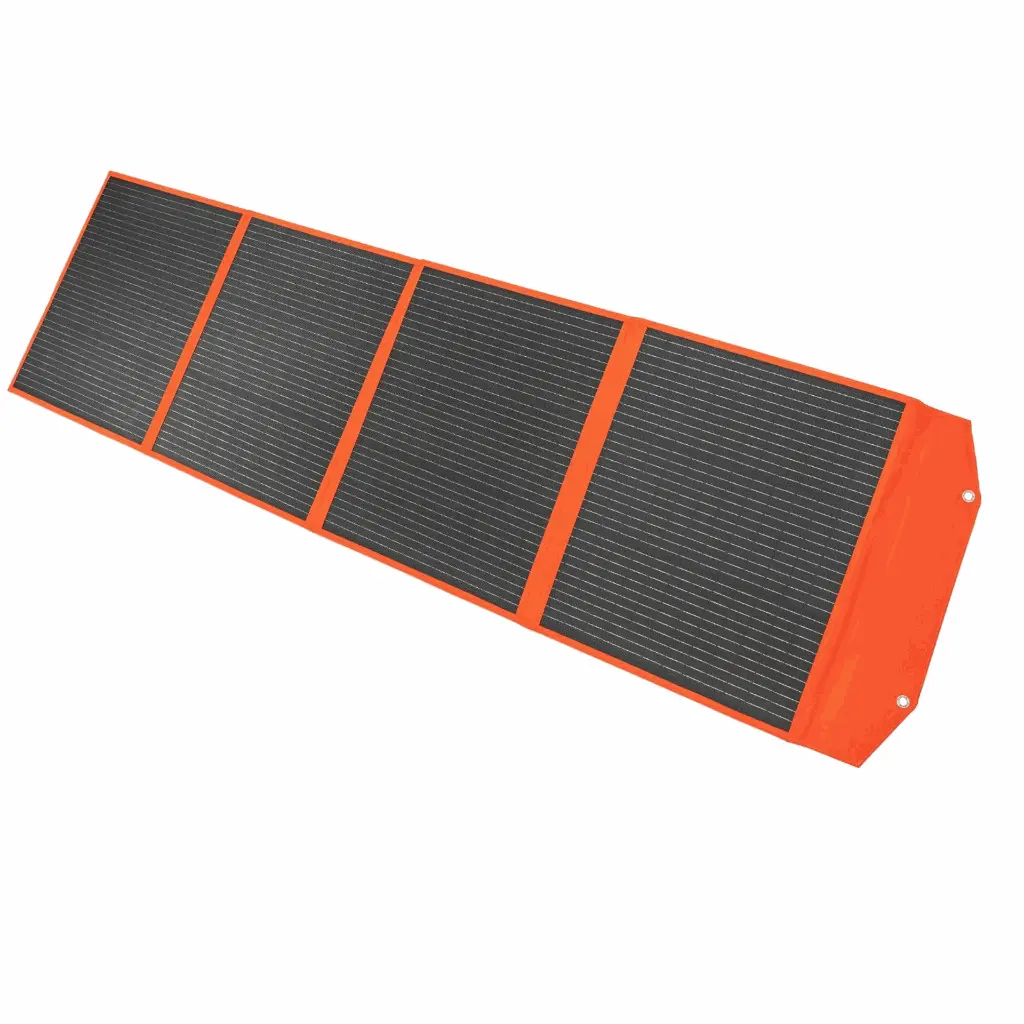

| Peak Power (Pmax) | 100Wp |
| Working Voltage (Vmp) | 18V |
| Working Current (Imp) | 5.56A |
| Open Circuit Voltage (Voc) | 21.0V |
| Short Circuit Current (Isc) | 6.11A |
| Cell | Mono 156.75 |
| Operating Temperature | -40°C (-40 °F) + 70°C (158 °F) |
| Output | DC5.5*2.1/USB*2 |
| Folded Size | 528*350*45mm |
| Expanded Size | 1650*528*5mm |
| Individual Packaging Size | 550*390*55mm |
| Net Weight | 4Kg |
| Gross Weight | 4.3Kg |
The generator has a 1100Wh (300,000mAh at 3.7V) battery capacity. Here's what that means in practical terms:
Phone Charging (assuming ~3000mAh battery):
- Approximately 80-100 full phone charges
Laptop Charging (assuming ~70Wh battery):
- Approximately 12-15 full laptop charges
Tablet Charging (assuming ~8000mAh battery):
- Approximately 30-35 full tablet charges
Running Appliances:
Small Appliances:
- LED Light (10W): 110 hours
- Mini Fridge (60W): 18 hours
- TV (32" LED, 50W): 22 hours
- Fan (40W): 27 hours
- CPAP Machine (30W): 36 hours
Medium Appliances:
- Small Microwave (700W): 1.5 hours
- Coffee Maker (600W): 1.8 hours
- Small Electric Cooker (500W): 2.2 hours
Charging Multiple Devices Simultaneously: The generator has multiple output ports (USB, QC 3.0, Type-C PD 60W, and DC outputs), so you can charge several devices at once. For example, you could simultaneously charge:
- 2-3 phones
- 1 laptop
- 1 small appliance
Solar Panel Recharging
The 100W solar panel under ideal conditions would take approximately 11-12 hours to fully recharge the generator (1100Wh ÷ 100W = 11 hours). In real-world conditions with varying sunlight, expect 12-15+ hours of good sunlight for a full charge.
Other Practical Information
- The generator uses pure sine wave output, which means it's safe for sensitive electronics
- With a lifecycle of >500 times, you can expect to use and recharge this system hundreds of times before significant battery degradation
- The 11kg weight means it's portable but still has substantial capacity
